double head rolling mill Jewelry Wire And Sheet Rolling Machine Gold Tool

52,500 INR/Piece

Product Details:

  • Product Type ROLLING MILL
  • General Use 1
  • Material Other
  • Warranty 1 YEAR
  • Click to view more
X

Price And Quantity

  • 1 Number
  • 52,500 INR/Piece
  • 52500.00 - 100000.00 INR/Piece

Product Specifications

  • Other
  • 1 YEAR
  • 1
  • ROLLING MILL

Trade Information

  • Western Union, Cheque, Cash Advance (CA)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia

Product Description

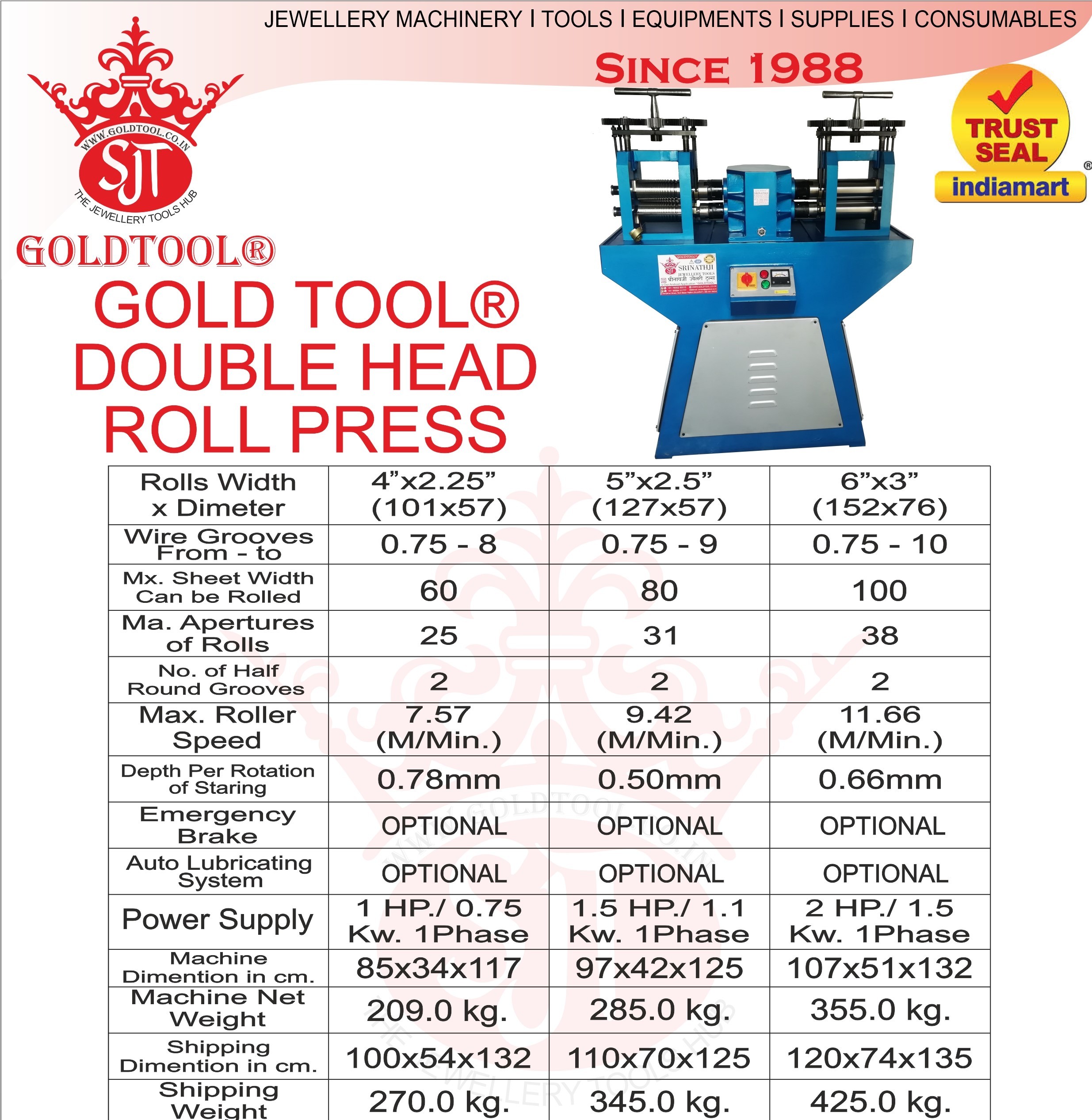

 rolls width x diameter : 5"x2.5" (127x57), wire grooves from - to : 0.75-9, max. sheet width can be rolled : 80, max. apertures of rolls : 31, no. of half round grooves : 2, max. roller speed : 9.42 (m/min), depth per rotation of staring : 0.50mm, emergency brake : optional, auto lubricating system : optional, power supply : 1.5 hp / 1.1 kw. 1 phase, machine dimension in cm : 97x42x125, machine net weight : 285 kg. shipping dimension in cm : 110x70x125, shipping weight : 345 kg.

 rolls width x diameter : 6"x3" (152x76), wire grooves from - to : 0.75-10, max. sheet width can be rolled : 100, max. apertures of rolls : 38, no. of half round grooves : 2, max. roller speed : 11.66 (m/min), depth per rotation of staring : 0.66 mm, emergency brake : optional, auto lubricating system : optional, power supply : 1 hp / 0.75 kw. 1 phase, machine dimension in cm : 107x51x132, machine net weight : 355 kg., shipping dimension in cm : 120x74x135, shipping weight : 425 kg.,

> rolls width x diameter : 6"x4" (152x76), wire grooves from - to : 0.71-12, max. sheet width can be rolled : 150, max. apertures of rolls : 38, no. of half round grooves : 2, max. roller speed : 8 (m/min), depth per rotation of staring : 0.99mm, emergency brake : attache, auto lubricating system : attache, power supply : 5 hp / 3.75 kw. 3 phase, machine dimension in cm : 140x55x150, machine net weight : 600 kg, shipping dimension in cm : 155 x 70 x 170, shipping weight : 1000 kg,

 roll width x diameter : 8"x5" (203x127), wire grooves from - to : 0.71-14, max. sheet width can be rolled : 200, max. apertures of rolls : 42, no. of half round grooves : 2, max. roller speed : 10 (m/min), depth per rotation of staring : 0.99mm, emergency brake : attache, auto lubricating system : attache, power supply : 7.5 hp / 4.31 kw. 3 phase, machine dimension net weight : 1000 kg., shipping dimension in cm : 165x75x180, shipping weight : 1400 kg
